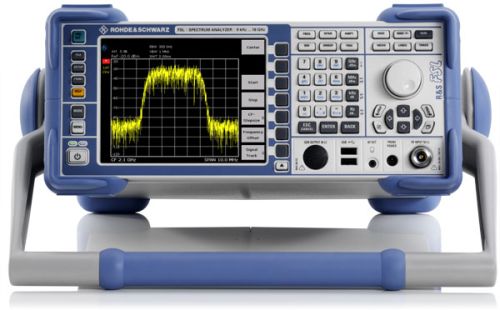

The R&S®FSL spectrum analyser is an extremely lightweight and compact instrument that is ideal for a large number of applications in development, service and production. Despite its compact size, it offers a wealth of functions more typical of high-end spectrum analysers, thus ensuring an excellent price/performance ratio.
The R&S®FSL is the only instrument in its class that features a tracking generator up to 6 GHz and a bandwidth of 20/28 MHz. Featuring an I/Q demodulation bandwidth of 20/28 MHz, the R&S®FSL is ideal for measuring both spectral and modulation parameters of broadband applications such as WLAN and WiMAX.
Additionally, applications in the microwave range can be supported with the R&S®FSL18, which operates at frequencies up to 18 GHz. Examples include the installation and maintenance of radar systems and microwave links, the production of microwave components, or satellite surveillance.
- Frequency range 9 kHz to 3/6/18 GHz
- Tracking generator for 3 GHz and 6 GHz models
- Wide I/Q demodulation bandwidth of 20/28 MHz
- Low measurement uncertainty <0.5 dB
- Portable for field applications
- Compact and lightweight at only 7 kg
- Optional battery operation
- Full scope of spectrum analysis functions
The graphical user interface reveals the R&S®FSL's similarity to the R&S®FSU and the R&S®FSP at a glance. Its compact size and low weight, plus its optional battery pack, make the R&S®FSL ideal for mobile use.
