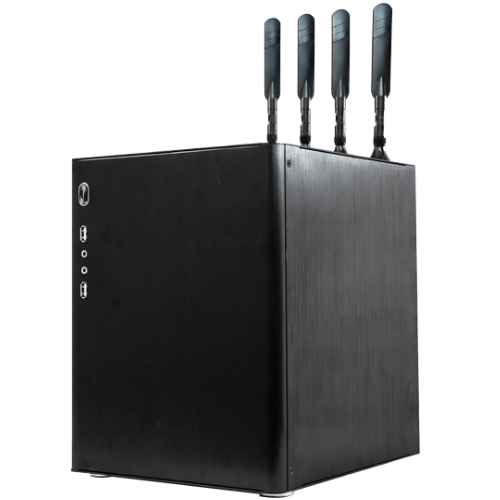

The AMARI Callbox Classic is the Original!
With the support of 4x4 mimo and carrier aggregation, this is the ideal solution for testing up to CAT10 LTE UEs. It is also suitable for handover and reselection testing thanks to multiple cells configuration. It also supports 5G NR NSA mode.

Packaged in a plug and play integrated PC, AMARI Callbox Classic is an ideal solution for LTE and NR testing of all types of user equipment with advanced configuration.

It acts as a 3GPP compliant eNodeB, gNodeB, EPC and 5GC allowing functional and performance testing of NR, LTE, LTE-A, LTE-M and NB-IoT devices. The offer is completed by an integrated IMS server as well as an eMBMS gateway for VoLTE and eMBMs testing.

The Callbox is powered by a deployment quality LTE and NR software suite offering the same level of baseband functionality as an indoor/outdoor network.

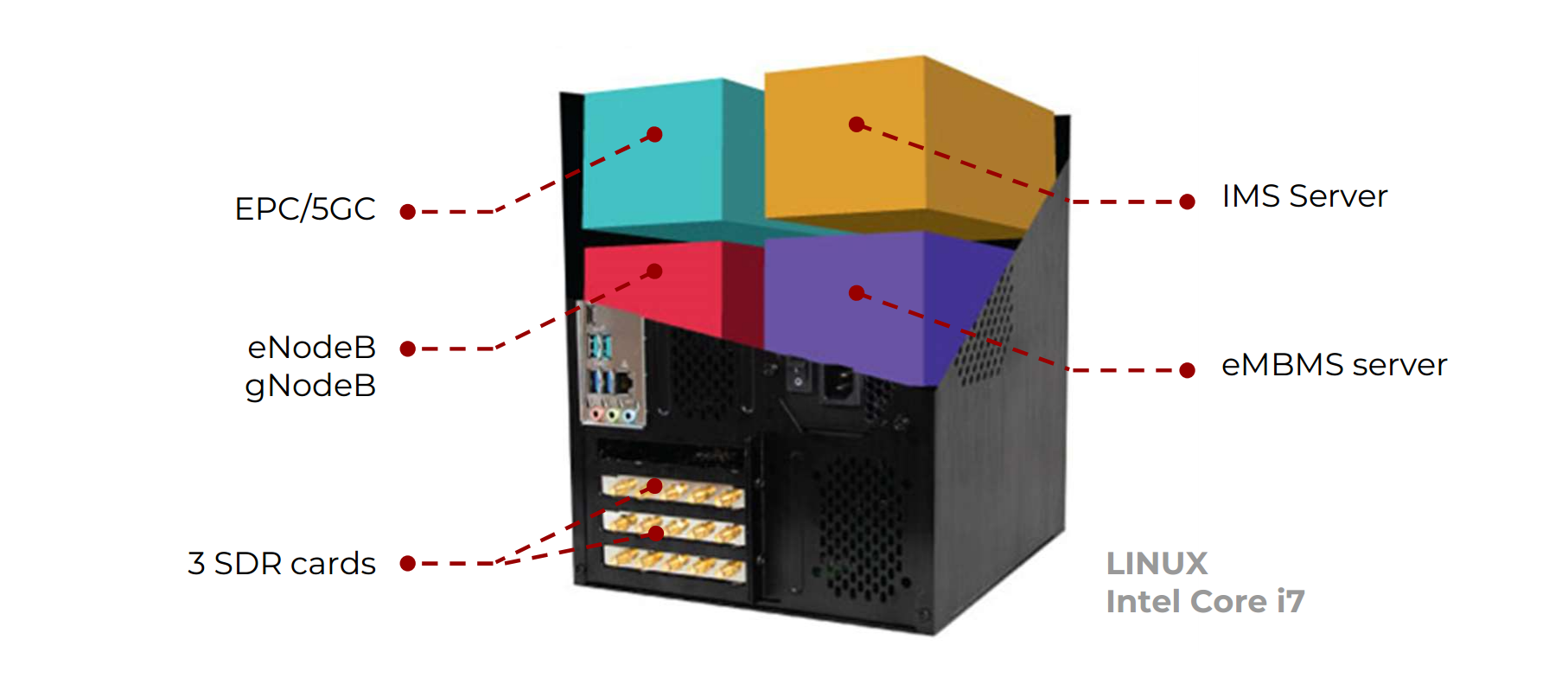

The LTE/NR Network on your desk
The LTE/NR Network on your desk
Thanks to AmariSoft's end-to-end technology, they provide boxes to cover UE, RAN and Core Network testing.

Logging and Measurements

Selective logging and display of all layers of 3GPP 5G and LTE stack as well as useful graphs and analytic tools

Automatic Test Setup and Scripting

Extensive WebSocket API allowing to send remote commands to eNodeB, gNodeB, EPC and 5G Core to ease test automation

Easy Configuration

Example configurations are included in software release in JSON format.

End-to-End Data Testing

Running on top of standard Linux in user space mode allows easy integration with IP services and using of native Linux tools for throughput testing

Channel Simulation

Included simulation of different DL channel types

Test Features

Allowing to override the nominal protocol behavior to simulate error cases.

High Performance

Supporting hundreds of UEs and multiple cells as well as carrier aggregation in downlink and uplink

Frequency Agnostic

Support of all LTE FDD and TDD frequency bands all 5G NR FDD and TDD Sub 6 GHz bands even non-standard ones allowing to deploy custom frequencies.

3GPP Features

Early access to 3GPP features for rapid validation of features under development
