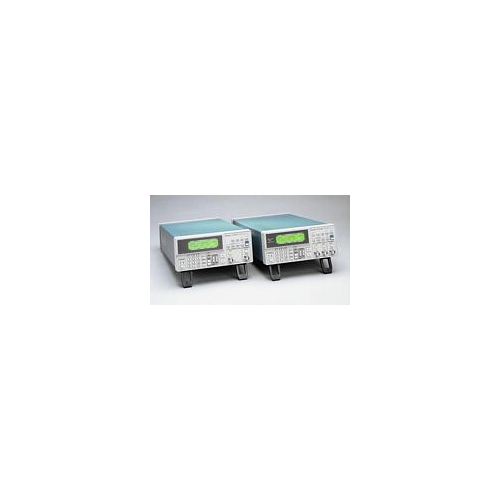

Tektronix AFG320 Arbitray WaveRForm Generator

Tektronix AFG320 Arbitray WaveRForm Generator
Tektronix logo

Tektronix AFG320 Arbitray WaveRForm Generator

The AFG300 Series is an excellent 16 MHz function generator with built-in arbitrary waveform, burst, sweep, and modulation capabilities. The instruments support standard waveforms including sine, square, triangle, ramp, pulse, DC and noise. Its sweep function includes Linear and Logarithmic (up or down) while operating in the Continuous, Triggered, and Burst modes.

Arbitrary Waveform Generation
With a sample rate of 16 MS/s, 12-Bit vertical resolution and a non-volatile memory that holds four 16,384-point waveforms, the AFG300 Series are powerful tools for simulating complex waveforms. Waveforms can be downloaded directly from selected Tektronix oscilloscopes and arbitrary waveform generators via GPIB, created with the standard ArbExpress waveform editing software package, or entered via the front panel.

Five functions in one instrument:
Function Generator
Arbitrary Waveform Generator
Burst Generator
Sweep Generator
Modulation Source
AFG320 Offers Two Independent Channels

Load waveforms directly from Selected Tektronix Digital Oscilloscopes via the GPIB Interface.

Windows-based ArbExpress Software Package, included for convenient creation and editing of arbitrary waveforms.

All functions including waveform creation and editing accessible via the front panel.
