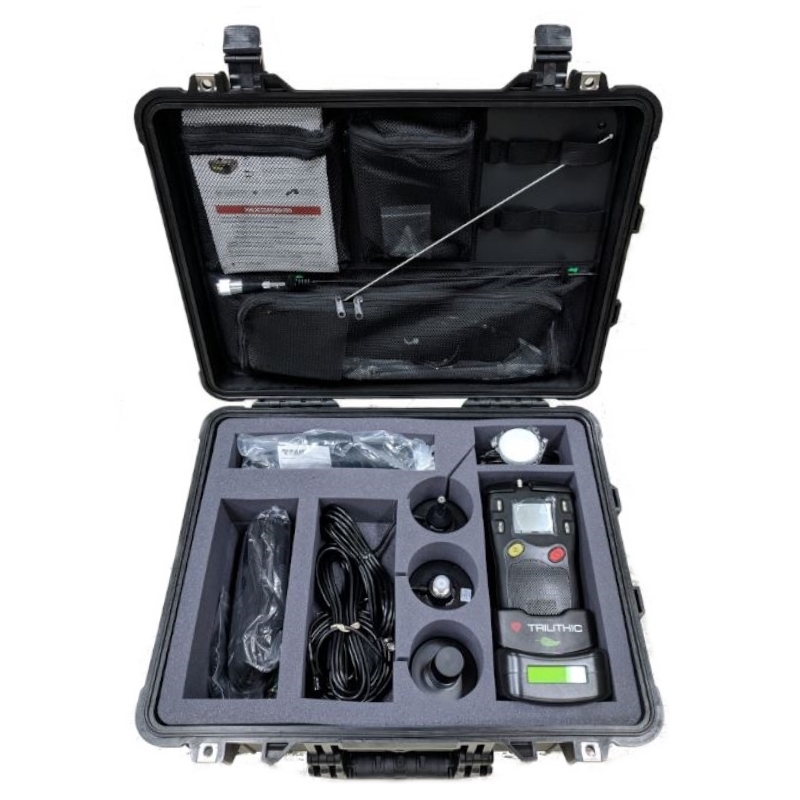

Trilithic EX-Demo SEEKER D HFC Leakage Drive Test Kit
Full Drive Test Kit Configured to NBN Specifications
Includes:
Hard Transit Case
Seeker D
SeekerD Mount
Magnetic Mount and AVM-3 Antenna
Magnetic Mount and AVM-4 Antenna
Low Band Antenna
High Band Antenna
NFP-1 Near Field Probe
Seeker MCA III Wi-Fi Unit
GPS Puck
Mobile Mount to Diplexer Cable
Diplexer
Mobile Mount DC Power Cable
Vehicle Wiring Protection Kit
Mobile Mount to MCA III Cable
Seeker D Soft Cover
USB Lead
LAN Lead
AC Power Plug
Installation Guide
Trilithics new Seeker D leakage detector accurately detects and measures signal leakage within the near-LTE and aeronautical frequency bands and features and unsurpassed sensitivity from 2 to 2000 uV/m.
The Seeker D works in conjunction with the new CT-4 Channel Tagger. The CT-4 is a 1U rack mounted unit that is located in the head end that provides an uncompromising tagging solution for active analog or digital systems.
In the NAV band, the Seeker D detects the proprietary signal from the CT-4 and scales it to be similar to leakage readings taken from an analog carrier. Consequently, readings taken from the Seeker meter and Seeker D meter produce similar results in the aeronautical band.
Whether testing for leaks in both digital and analog systems, or monitoring aeronautical bands or near-LTE, Seeker D provides all of the capability to find and fix leaks quickly, accurately, and effectively.
The Seeker D leakage detector and the included mobile mount allows you to utilize your existing LAW Server, and Garmin GPS receiver, while keeping your plant technologically ready to meet tomorrows leakage monitoring needs.
