Danbridge JP15 Insulation Tester
SKU: 7319a2673dc3

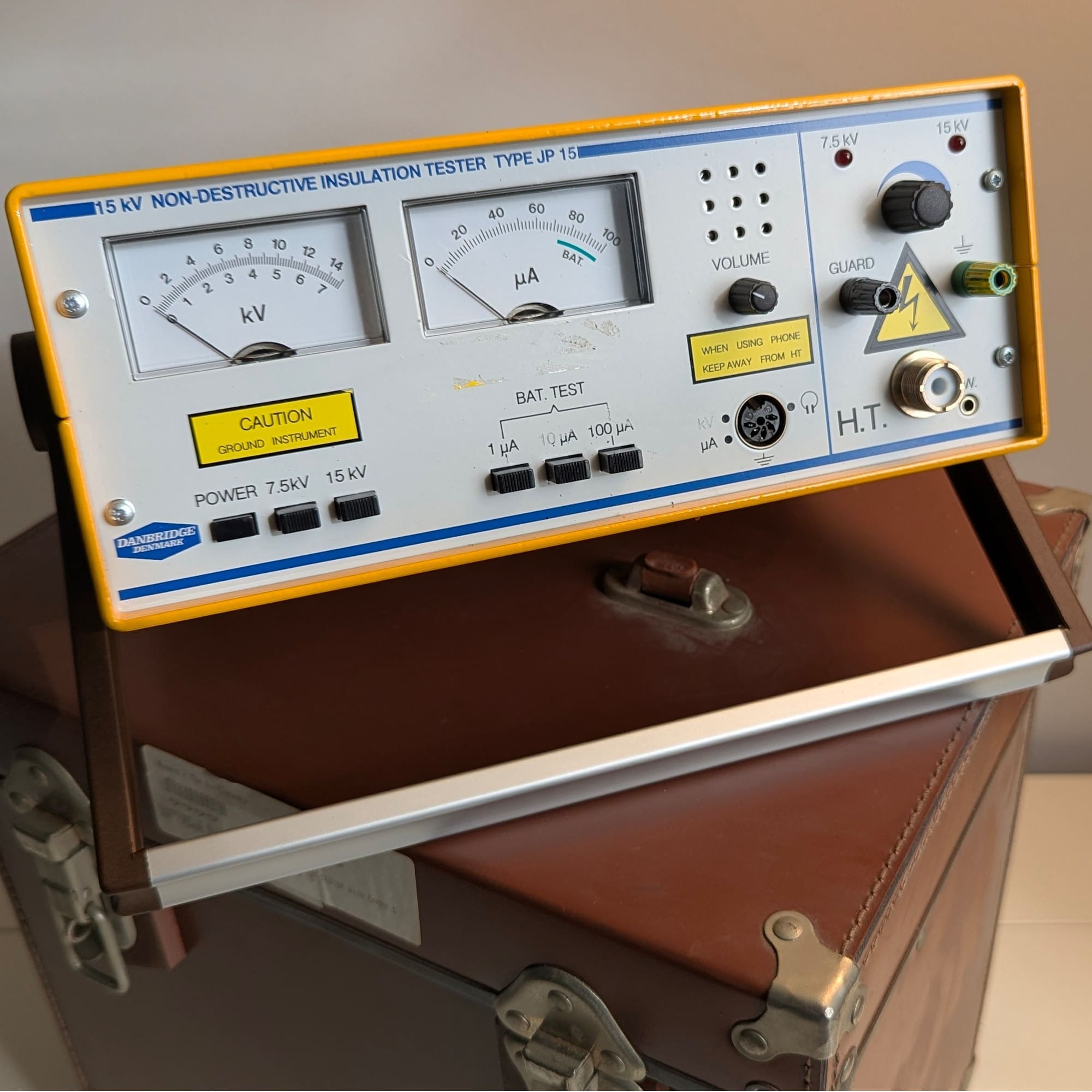

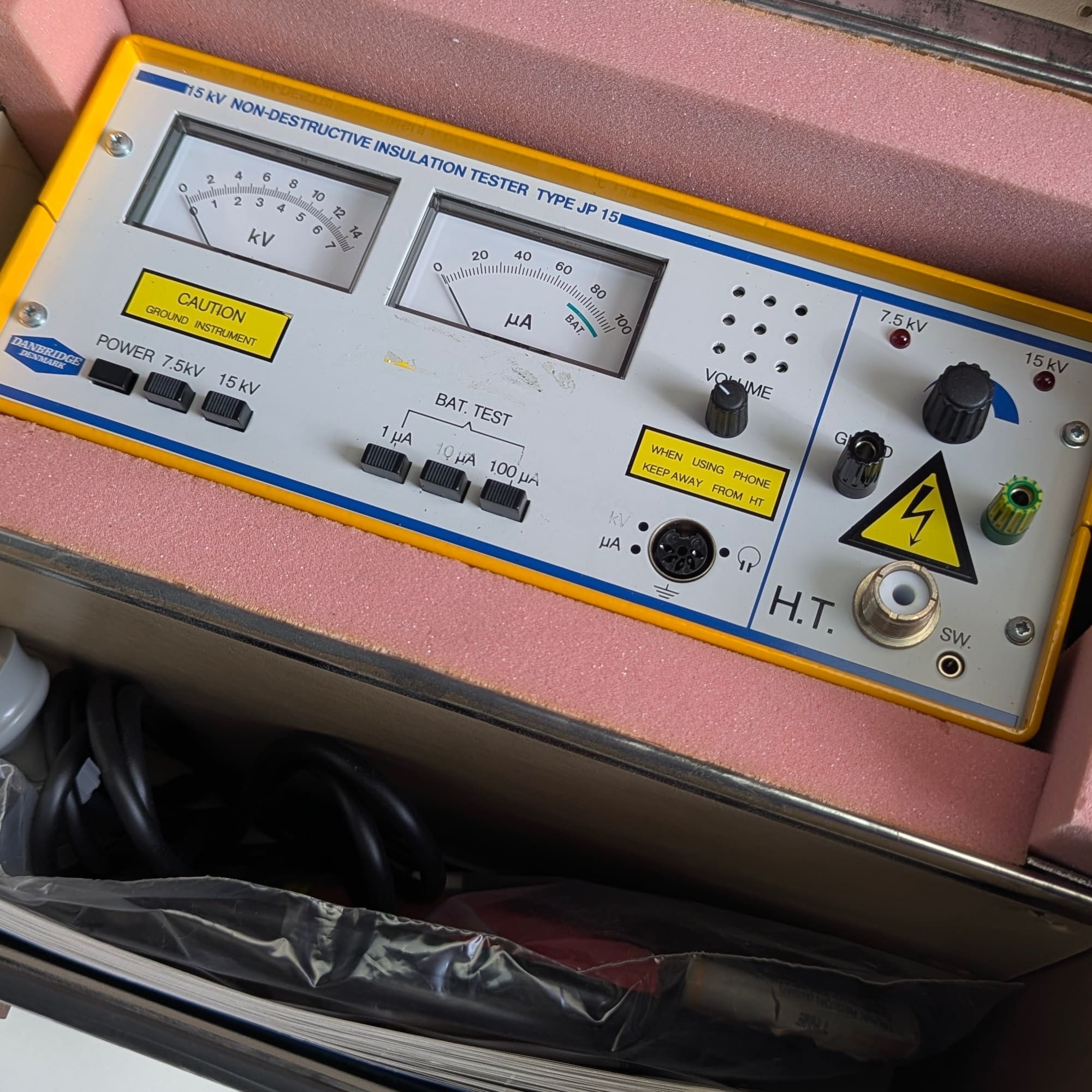

Danbridge JP15 15kV Non-Destructive Insulation Tester
The JP15 Non-Destructive Insulation Tester provides a DC voltage adjustable up to 1kV. The output voltage and current are indicated on the separate meters.
Technical Specifications:
Test voltage: 0–7.5 kV / 0–15 kV DC adjustable
Voltmeter ranges + accuracy (±5%)
Current ranges (µA / pA)
Output resistance (~200 kΩ at 15 kV)
Stability (< ±1% variation)
Audible ionization via built-in loudspeaker
These testers are tested and refurbished at the point of sale.
The refurbish lead time is 2 weeks.

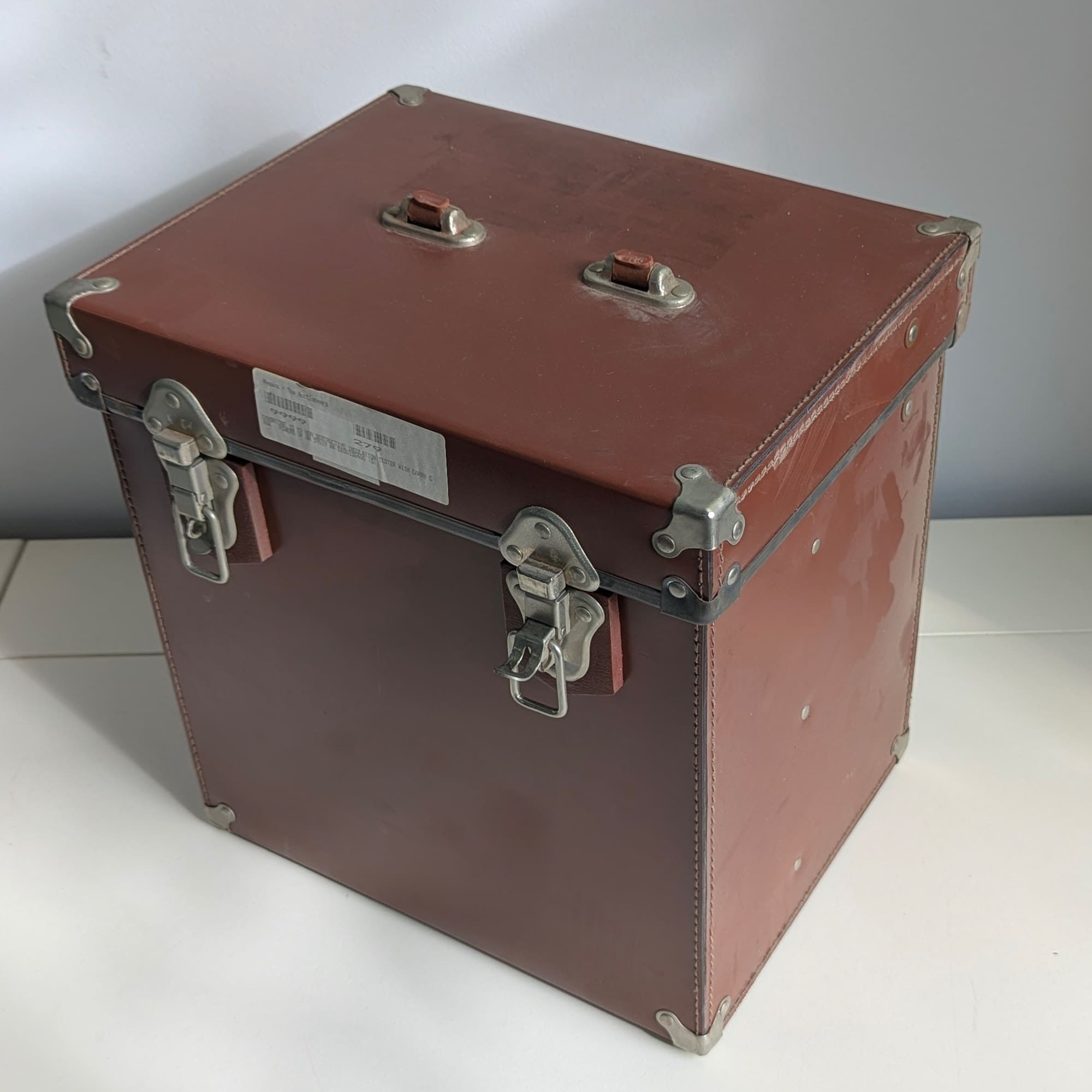

Please note: The leather case is very durable but the plastic lid handle is fragile.
If your unit is supplied with its plastic lid handle please keep in mind it may break at any time.
The JP15 tester itself comes with a 3 Months repair warranty.
