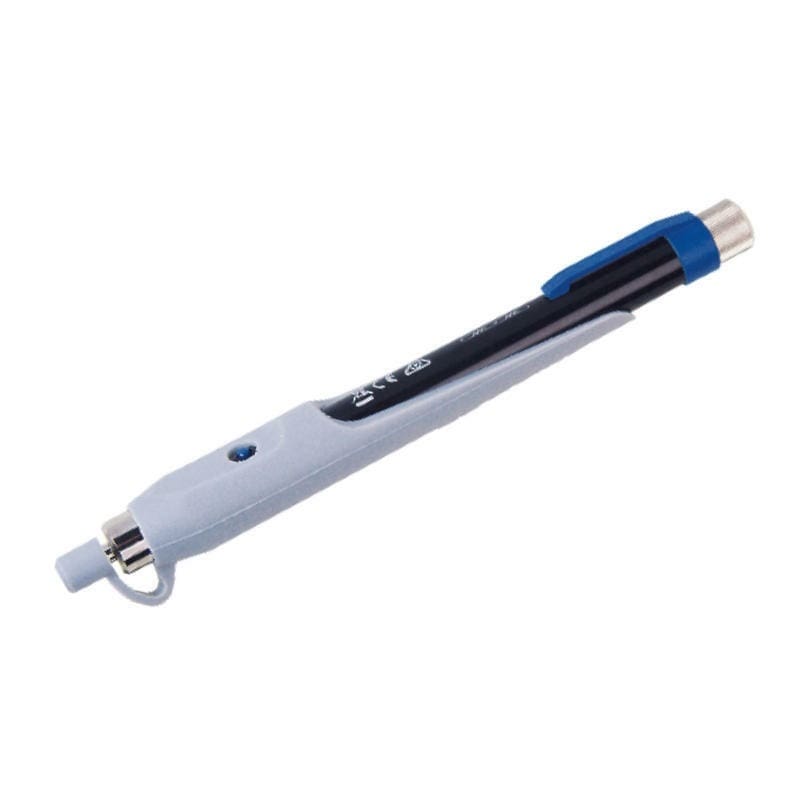

Kingfisher KI6358 Visual Fault Locator
SKU: 1ea915c4fb97
Kingfisher KI6358 Visual Fault Locator 650 Nm 2.5mm, Pulsed & CW
Fiber Visual fault locators (VFL) are used for installation, fault finding, continuity checking, polarity checking, verifying a signal path, and identifying a fiber. For single mode, multimode and plastic fibers. This is a low price 1mW fiber laser.
- Easy, compact pen-style checker
- Quality drop-resistant metal & rubber body
- Class 1 laser needs no safety precautions
- 2.5 mm universal connector & translucent captive cap
- Will not turn on by mistake, or roll off a bench
- Continuous or pulsed operation
- The smallest pen with 2 x AAA batteries
- 3 year warranty
More Information
- Wavelength 655 ± 5 nm
- Output power2 (typical)
- 1479 µW / 1.7 dBm @ uncoupled
- 1259 µW / 1.0 dBm @ 50/125 µm
- 741 µW / -1.3 dBm @ 9/125 µm
- Connector 2.5 mm universal
- Working mode CW & 2-3 Hz modulation
- Retention force for ferrule 1-2 N
- Retention force for ferrule 1-2 N
- Laser protection class Class 1, IEC60825-2011
Visual Fault Locator, 650 NM, 2.5 Mm, Pulsed & CW
