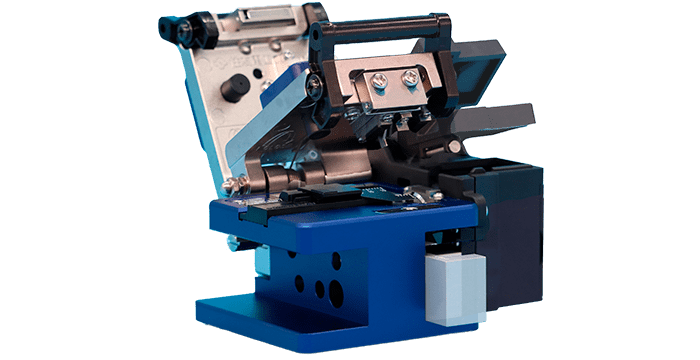

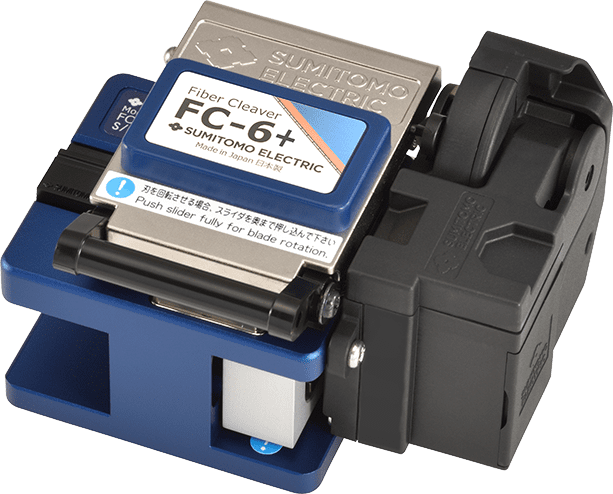

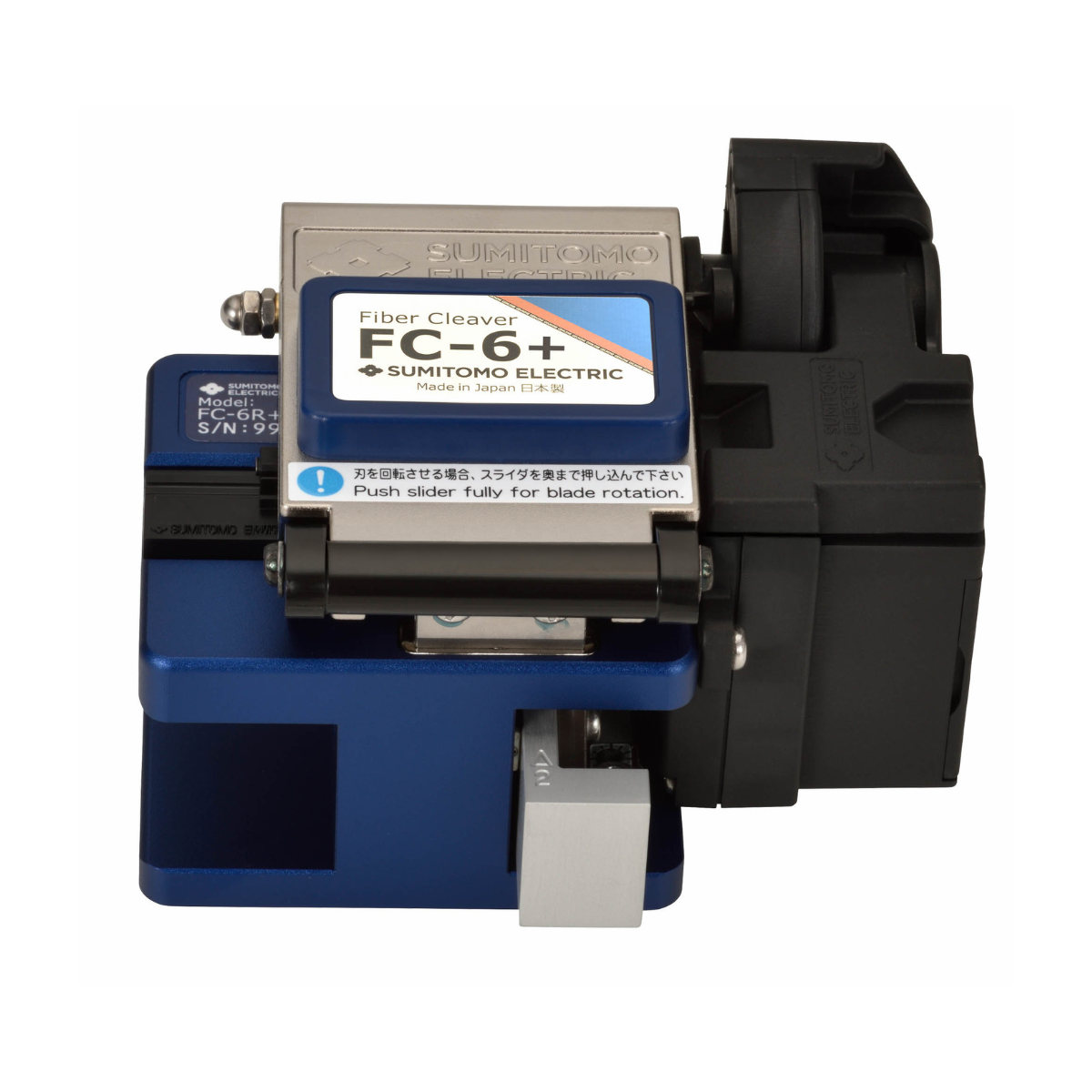

Sumitomo FC-6R+ Fibre Cleaver

Sumitomo FC-6+ Benchtop Fibre Cleaver (Latest Model)

Benchtop fibre cleaver, with an automatic blade return system for single fibres and up to 12 fibre ribbons.

FEATURES:

• Blade Auto Return allows for seamless operation, maximize work efficiency.
• High quality blade ensures high quality cleaves long life with expert metal working allowing to realise the consistent quality.
• Automatic blade rotation

BASIC CLEAVE PERFORMANCE:

• 125um, silica glass fibre; Single to 12 fibre ribbon
• Cleave length; 6-12mm (250um fibre), 10-20mm (900um fibre), 10mm (Ribbon fibre)
• Typical Cleave angle; 0.5 degrees
• Blade life; 54,000 fibres
• Automatic blade rotation; Available (switchable to fixed, and one time)
• Automatic off-cut collection

OTHER SPECIFICATIONS:

• Dimensions and weight; 100 x 81 x 63mm, 420g
• Operating condition; -10~50 degree C, 0~95% RH (non-condensing)
• Storage condition; -10~50 degree C, 0~95% RH (non-condensing)

KIT INCLUDES:

• Carrying case
• Single Fibre Adapter
• Off-Cut Collector

SPECIFICATIONS SHEET:

https://global-sei.com/sumitomo-electric-splicers/common/img/products/fiber-cleavers/fc-6cp/FC-6plus_EMEA_low.pdf
