VIAVI OMK-36V2 Quad SM/MM ILTS Loss Test Set

SKU: OMK-36V2

The VIAVIOMK-36V2 optical test kits are a range of pocket-sized and rugged instruments for installing and maintaining single mode (SM) and multimode (MM) fiber optic networks. All test kits are equipped with an optical power meter and a dual or quad-wavelength optical light source for power level, insertion loss measurements, and continuity checks.

Benefits

  • Ready when you need it – ultra-high reliability and high availability
    • Dependable, German design
    • Designed with outdoor environment in mind
    • Low power consumption for extended continuous use
    • Instant On – no boot time
  • Easy to use
    • High-Visibility backlit graphical display with context-sensitive softkey
    • No setup ‘OptiChek’ measurement mode
    • Fast Auto-λ, Multi-λ mode (~ 1 sec)
    • Clear pass/fail information
    • Automatic upload of results via VIAVI Mobile Tech application

Key Features

  • Broadband power meter with Dual SM or Quad SM/MM sources
  • Fiber Tracing – detecting optical light source tone(s)
  • Storage for over 1000 test results and PC download capability
  • Bluetooth low energy connectivity to the VIAVI Mobile Tech App
  • 4-way powering – alkaline AA, NiMH AA rechargeable, AC power adapter and power over USB
  • 3-year recalibration period

Applications

  • Measuring optical power levels and link insertion loss for both SM and MM networks
  • Network Build and Maintenance for>
  • Enterprise/LAN
  • Access and Metro (LAN/WAN)
  • FTTx (e.g. Home/Antenna)
  • Standard and high-power level tests for use in telecom, CATV, and military applications

Packages

  • The OMK-35V2 is a SM kit with an OLS-35V2 and an OLP-35V2 for Telecom applications.
  • The OMK-38V2 is a high power SM kit with an OLS-35V2 and an OLP-38V2 for CATV and amplified DWDM applications up to +26 dBm.
  • The OMK-36V2 is a quad SM/MM kit with an OLS-36V2 and an OLP-35V2 for Enterprise LAN / WAN applications.

All Optical Test Kits include accessories: VIAVI Light Source, VIAVI Power Meter, soft bag, universal AC power adapter. Neck streps, bag, dry AA-batteries, quick start guide are included for each Source and Power Meter.

$4,509.33

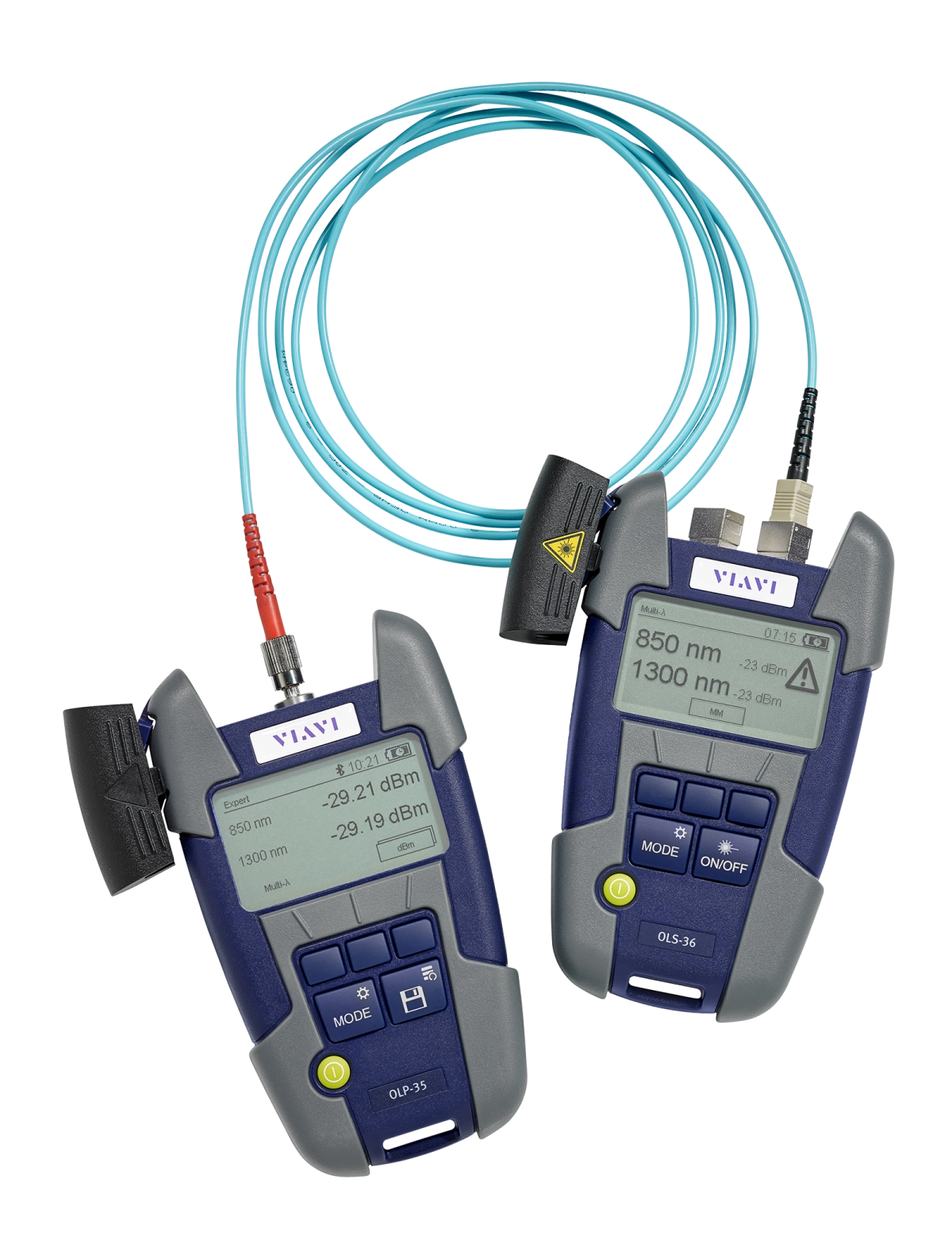

VIAVI OMK-36V2 Quad SM/MM ILTS Loss Test Set - main product image

To tap into TMG’s 135+ years of technical expertise, please fill in the above contact form, or call us on 1800 680 680, and one of our product experts will be happy to assist you. If you already know exactly what you need, most of our range is also available for sale online, at Contractor Essentials.
