VIAVI ONA-800 4136C-FCOMP

VIAVI ONA-800 with 4136C OTDR TRI-BAND FiberComplete Single Unit

FiberCompletePRO™ is the first solution to fully automate all the fundamental fibre-qualification tests, such as bi-directional insertion loss (IL), optical return loss (ORL) and optical time domain reflectometry (OTDR), with one module from one optical port. For high fibre count projects, it is now possible to automatically test up to 12 ribbon fibres with the Multi-fibre MPO optical switch module.

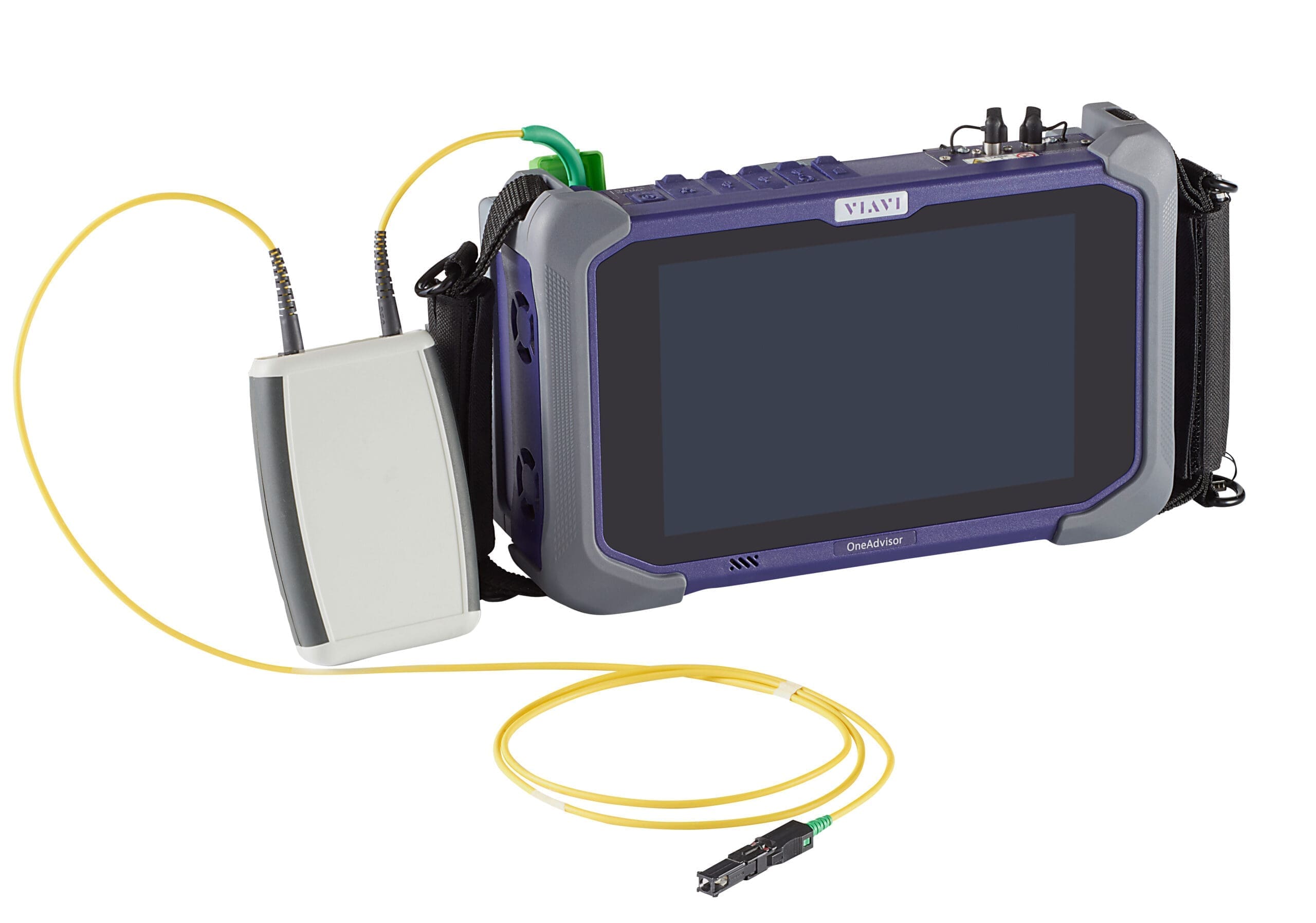

This configuration allows the technician to connect to another FiberComplete OTDR for automated bi-directional IL/ORL & OTDR.

The VIAVI One Advisor 800 comes equipped with the long range OTDR module which supports all three single mode wavelengths of 1310, 1550 and 1625nm. The range on this module extends to 45dB on 1550nm with a distance display range of up to 400 Km.

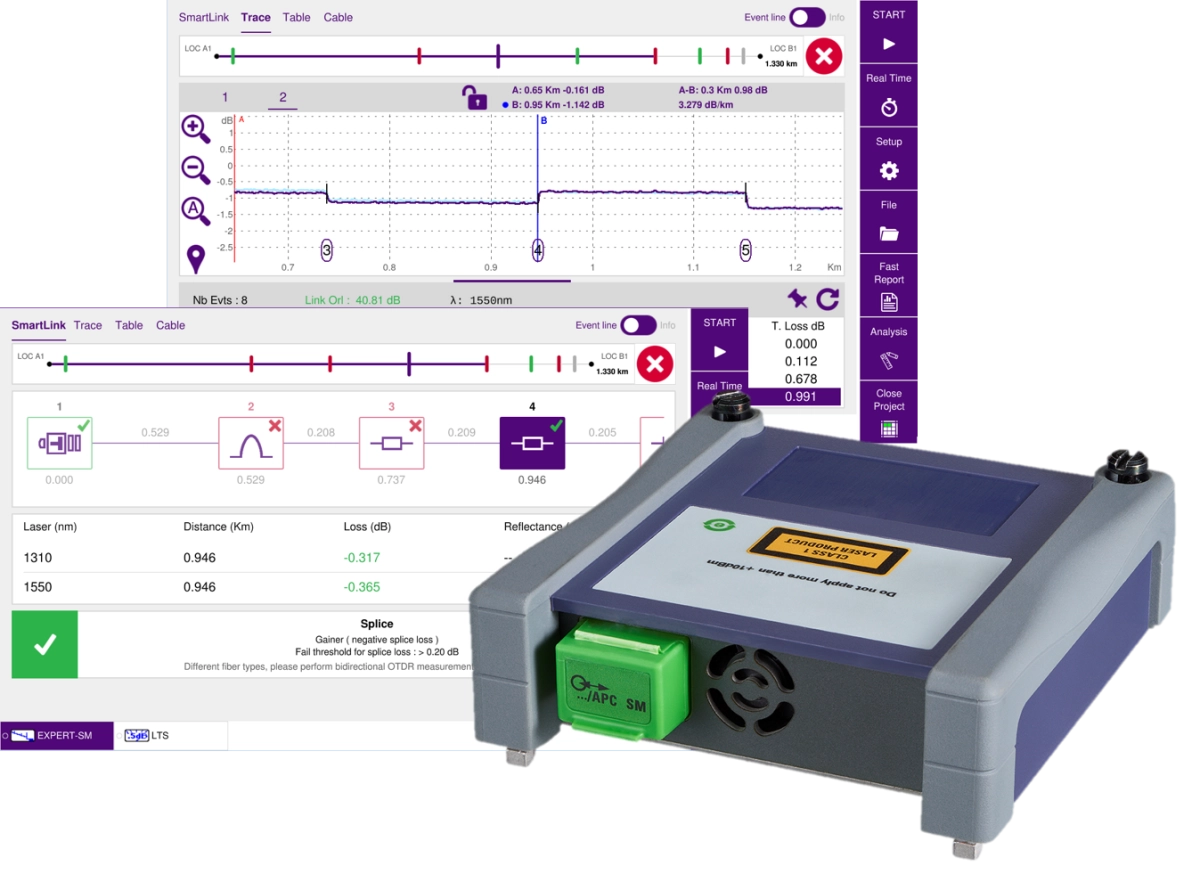

With a best in class attenuation dead zone of 2.5 metres, the 4136 C OTDR has one of the most accurate lasers in the market, giving the technician the ability to shoot traces much farther than competitors, while maintaining high resolution.

What’s included in this package?
Hardware:
One Advisor 800 Mainframe
98 Wh Lithium-ion Battery & 160W Power Supply
E4136C-FCOMP-APC 1310, 1550, 1625nm Bi-Directional Module
Power Meter & VFL

Software & licenses:
Bluetooth & WiFi Connectivity
Smart Access Anywhere
CABLE-SLM OTDR Function

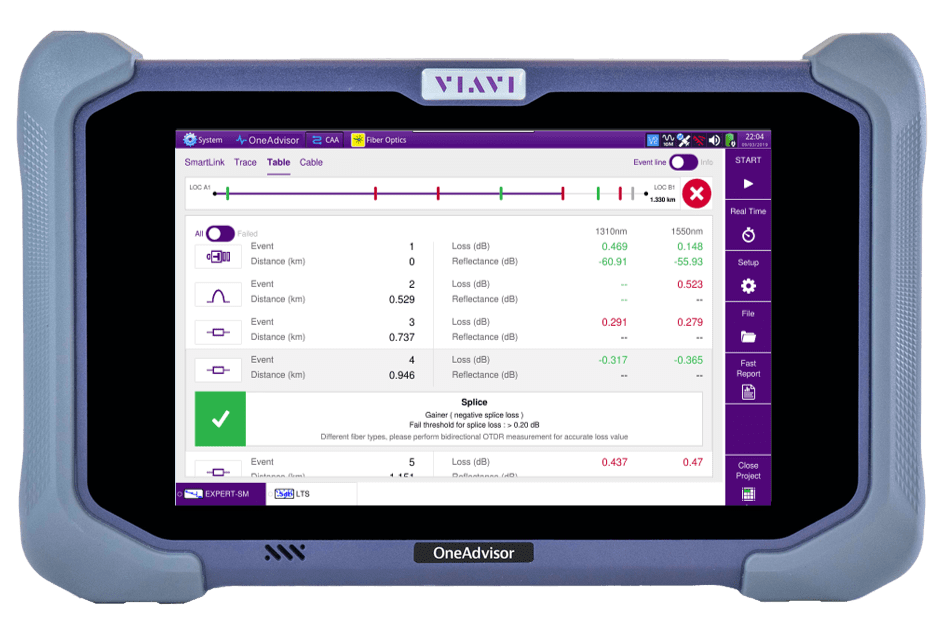

TRUEBIDIR, ON-BOARD REAL TIME BIDIRECTIONAL EVENT ANALYSIS
