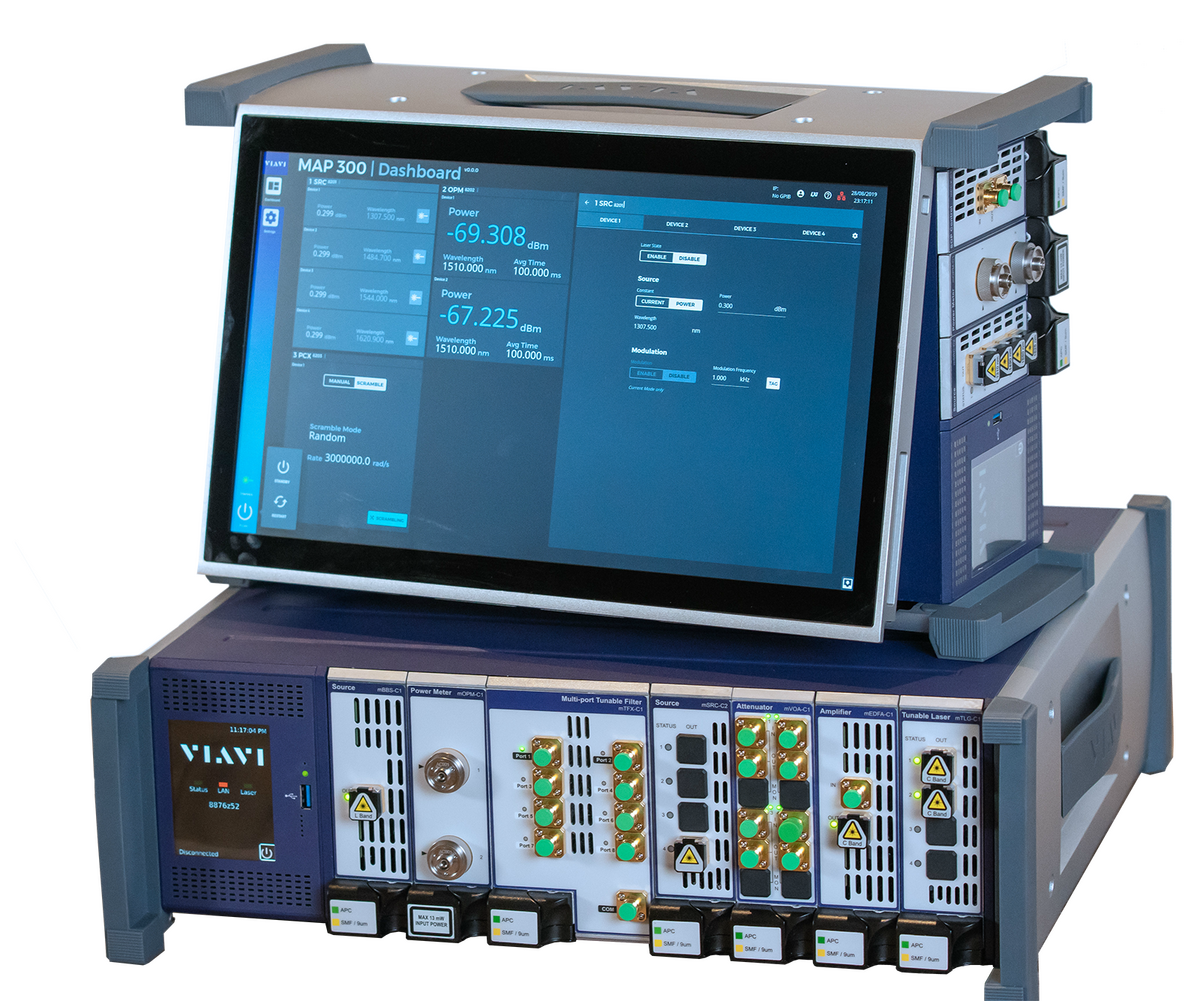

VIAVI MAP-300 - Gen 3 Optical Test & Measurement System

From the original Multiple Application Platform (MAP) System released in 2001 to the new third generation MAP-300 Series, the MAP system is the heart of the VIAVI optical test solutions for labs and manufacturing. With unmatched scalability, users can be assured that our solutions will meet their current and future needs

The new MAP-300 builds upon the proven strengths of the MAP System while adding innovation where it matters most for our customers. Backwards compatible support for the installed automation base, combined with several new features, including an HTML-based GUI for multi-user environments, gives customers the capabilities they need to achieve their goals. We can’t wait to see what you will accomplish with the new MAP-300!

Quantum Testing requires test beds that are comprised of switches, wavelength management tools, EDFAs, attenuators to manage various quantum experimental conditions. These labs will build networks for quantum techniques trials/evaluations.

VIAVI MAP-300 is a modular, dense, and easily reconfigurable Optical Test Platform with remote and automatable capability through Ethernet. It effectively explores the limits of quantum in computing, networking, encryption, and cryptography.

Optical Manufacturing Test Platform
2020 Lighwave Innovation Award Winner

Highlights

•  On-board 3.5-inch touch screen provides quick access to connection and configuration settings.
•  Graphic User Interface features intuitive dashboard with configurable widgets that  correspond to each populated cassette.
•  Multi-user access supported by web based interface.
•  The industry’s largest selection of hot swappable modules for optical communications test and measurement in lab & manufacturing environments
•  Backward compatible with MAP2xx series cassettes and remote-control support

Applications

• General purpose fiber-optic lab use
• Manufacturing test automation
• DWDM/WSS test
• Connectivity IL/RL
• Polarization scrambling and OSNR
• Quantum Key Distribution (QKD)
• Quantum Computing

Key Features

• Available in rackmount, reverse-rackmount and benchtop mainframe configurations
• Eight-slot (MAP-380) and three-slot (MAP-330) configurations
• HTML-based graphical user interface (MAP-300 GUI)
• Field-replaceable controller includes an integrated 3.5- inch LCD touchscreen for network and system status
• Support for USB 3.0 port, 15.6 external monitor, and ethernet
• Optional GPIB, Ethernet port, USB and additional USB and trigger modules
• SCPI logical interface for automation programming, with remote programming supported via TCP/IP (LXI) over ethernet, GPIB and direct socket
• Multi-user capability
• Hot swappable modules

Compliance

MAP Series cassettes include amplifier and source cassettes classified as either Class 3B or Class 1M Laser products. While operating in a MAP Series mainframe, cassettes meet the requirements of the IEC 60825-1 standard and comply with 21 CFR 1040.10 and 1040.11, except for deviations pursuant to Laser Notice 50, dated June 24, 2007.
