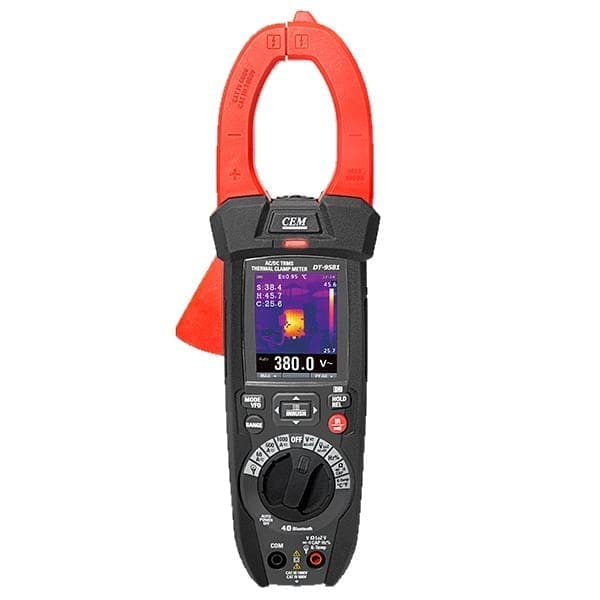

CEM DT-9581 True RMS 1000A AC/DC Thermal Clamp Meter
SKU: 2ad274849a94
CEM DT-9581 True RMS 1000A AC/DC Thermal Clamp Meter (Limited Stock)
EX Display Stock Item. Only 1 available!
Features:
- Built-in Thermal Imager with 80×80 InfraRed resolution quickly and safely identifies hot spots without contact
- 2.4“ TFT color 6000 counts LCD display with 240×320 pixels for easy and clear viewing of images and readings
- True RMS measurement for ACV / ACA / LoZ for ACV measurement
- Flexible current probe (320B/320BS optional) expands the measurement range to 3000 ACA
- Low pass filter for accurate measurement of variable frequency drive (VFD) signals
- 1.4’’ (37mm) Jaw opening
- AC, AC+DC True RMS measurement & 1KHz ACV, ACA bandwidth
- A/D convert fast sampling time: 10 times/sec
- Peak capture as fast as 500μS & Inrush current
- Min/Max/Avg with Time stemp (records signal fluctuations)
- With Bluetooth connect to Thermview+ smart phone App for documentation reporting and sharing
- Logging function with Trend capture for easy review of logged data
- Double molded plastic housing for safe testing and flashlight for dark location
RRP $1950
Your Price $945 Plus GST
To tap into TMG’s 135+ years of technical expertise, please fill in the above contact form, or call us on 1800 680 680, and one of our product experts will be happy to assist you. If you already know exactly what you need, most of our range is also available for sale online, at Contractor Essentials.
