Lexxi Handheld Cable Fault Locator TDR Kit

Lexxi Handheld Cable Fault Locator TDR Kit. by Radiodetection

Please Note: This item is not regularly stocked. Standard lead time is approximately 3 weeks from the date of purchase.

For further information, please contact TMG on 1800 680 680 or email sales@tmg.com.au

Built on RiserBond & Bicotest TDRs for Quality!

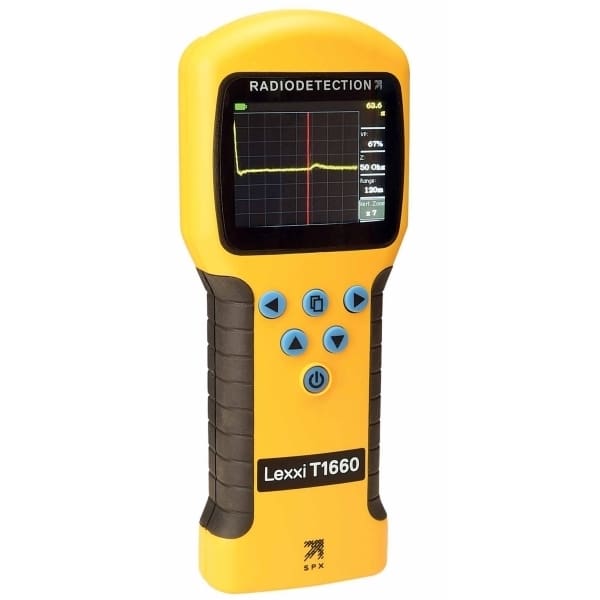

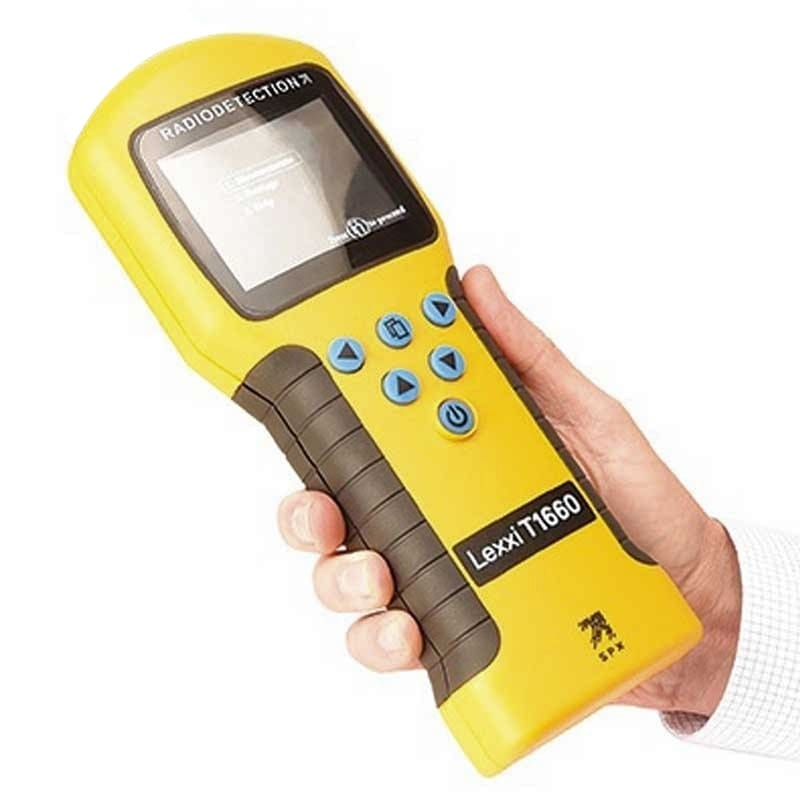

The Lexxi T1660 is an accurate, easy to use TDR for tracing first-line faults.

Designed for First Responders, the Lexxi T1660 builds on Riser Bond’s and Bicotest’s decades of TDR experience to provide a cable tester whose accuracy, range and resolution gives technicians the tool they need to find faults quickly and accurately.

It can be used across a broad range of applications including telecom, CATV and even live 3-phase LV power cables via the optional Category IV Blocking Filte.

Featuring 1% distance accuracy and a pulse that automatically scales to match the range, Radiodetection’s Lexxi T1660 targets a wide range of cable analysis applications such as finding opens, shorts and partials, verifying cable installations and detecting cable theft. Its 328 x 256 pixel, 3.5″ colour display together with a 19,000/6km maximum range means faults can be traced quickly and accurately.

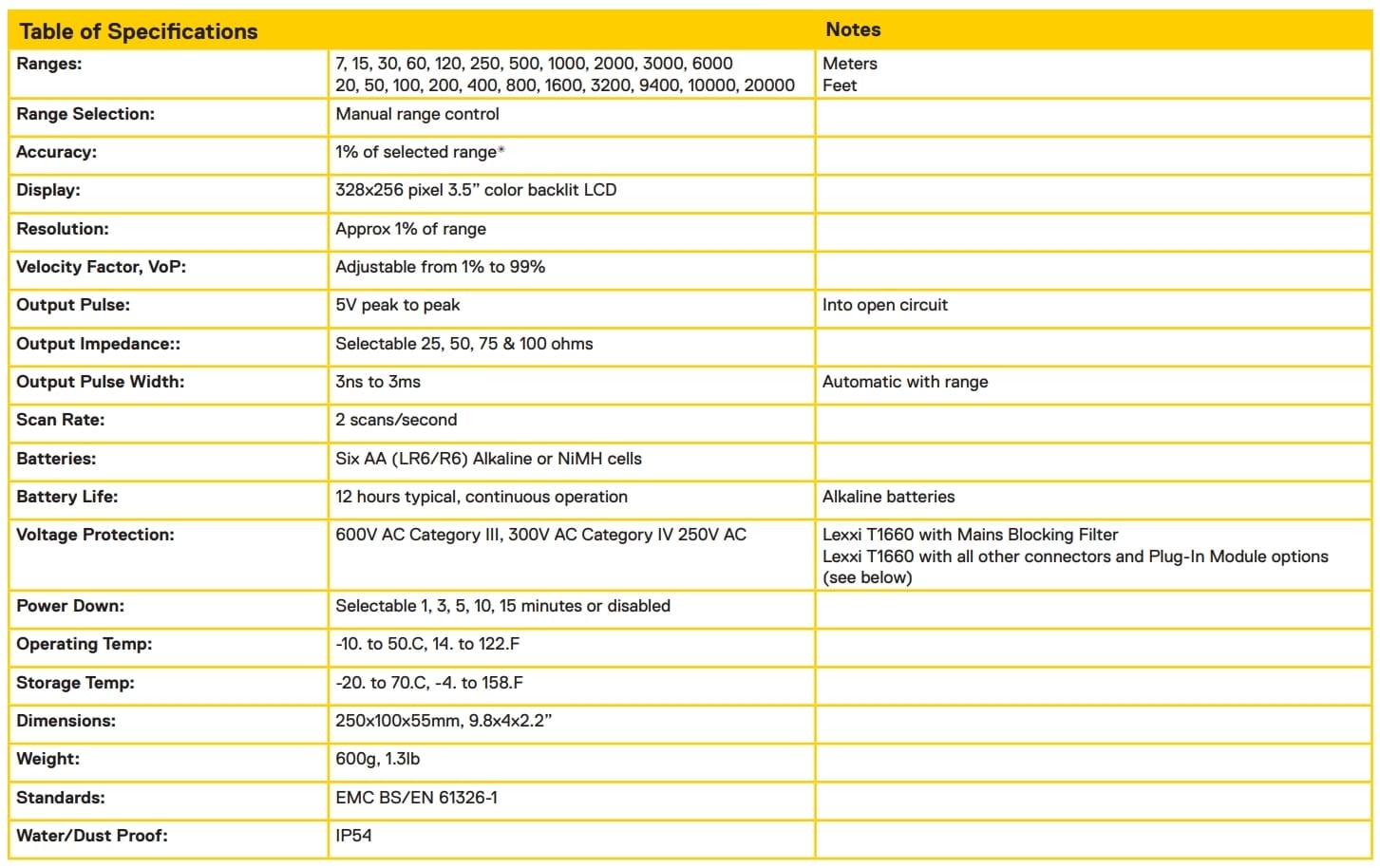

Features:

• Large, colour display
• 1% fault location accuracy
• 0.5m dead zone
• 6km, 19000 maximum range
• 7m, 23 minimum display range
• 11 range settings
• Operates from Alkaline or NiMH rechargeable batteries
• 12 hours typical battery lifetime (alkaline)
• User selectable Power Down time
• Selectable cable impedance
• VOP adjustable from 1% to 99%

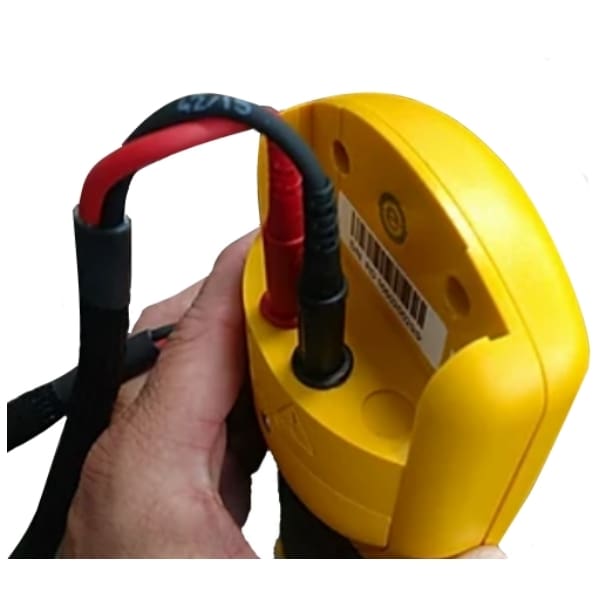

• 100Ù Twisted Pair Alligator Clip cables included as standard

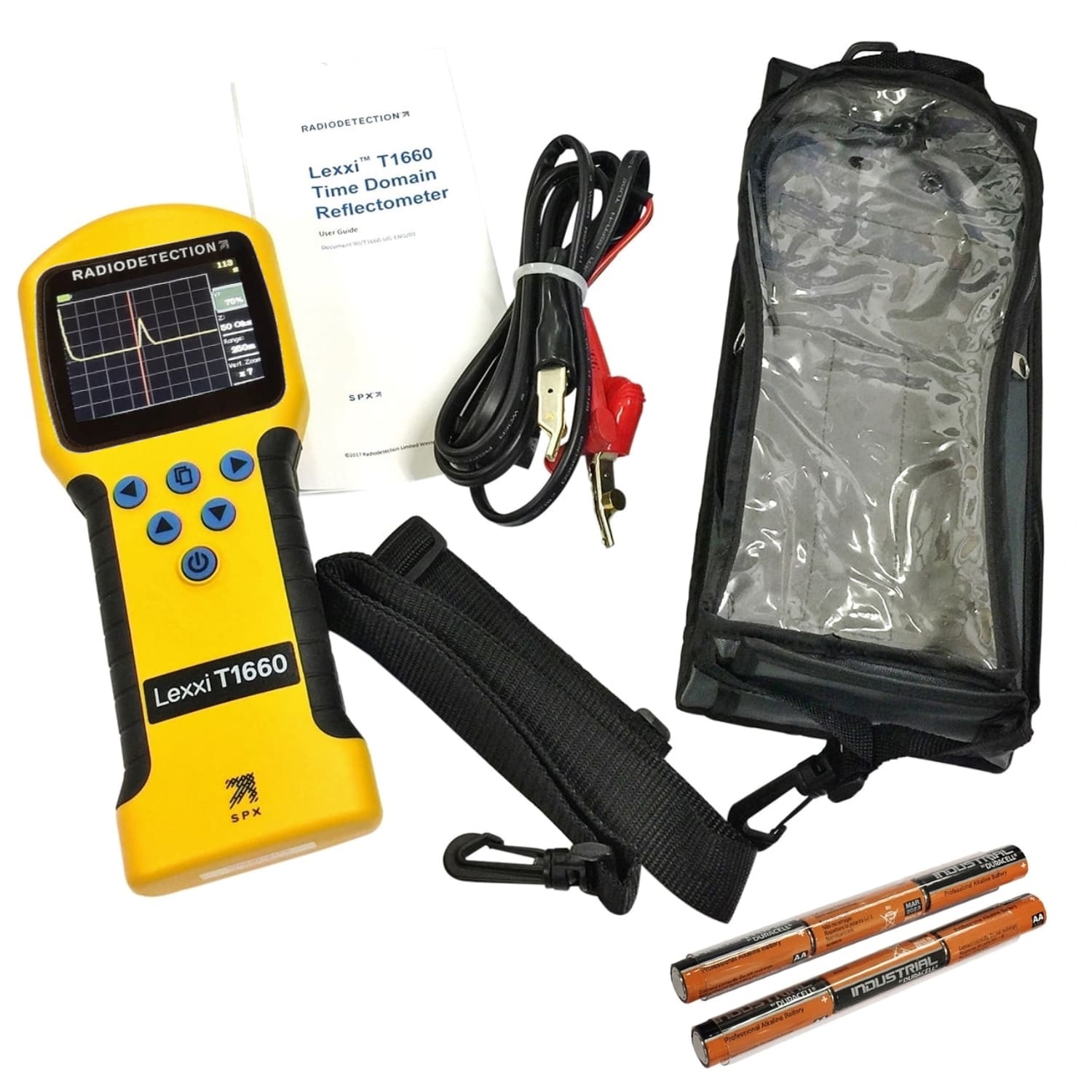

What’s Included?:

• Radiodetection Lexxi T1660 Time Domain Reflectometer
• Twisted Pair Alligator Clips
• T1160 Carrying Bag
• Strap
• Users Guide

Optional Accessories:

• 10/T1660-BLOCK-MOD:Mains Blocking Filter, 25 Ohm, CAT IV
• 10/T1660-TP-CROC-MOD-50:50 Ohm Twisted Pair Plug-In, Croc Clip
• 10/T1660-TP-CROC-MOD-100:100 Ohm Twisted Pair Plug-In, Croc Clip
• 10/T1660-BNC-MOD-75:75 Ohm BNC Plug-In, BNC-F. With RG-6 Coaxial Connector
