Volt Safety No
SKU: b77c800c9dfc

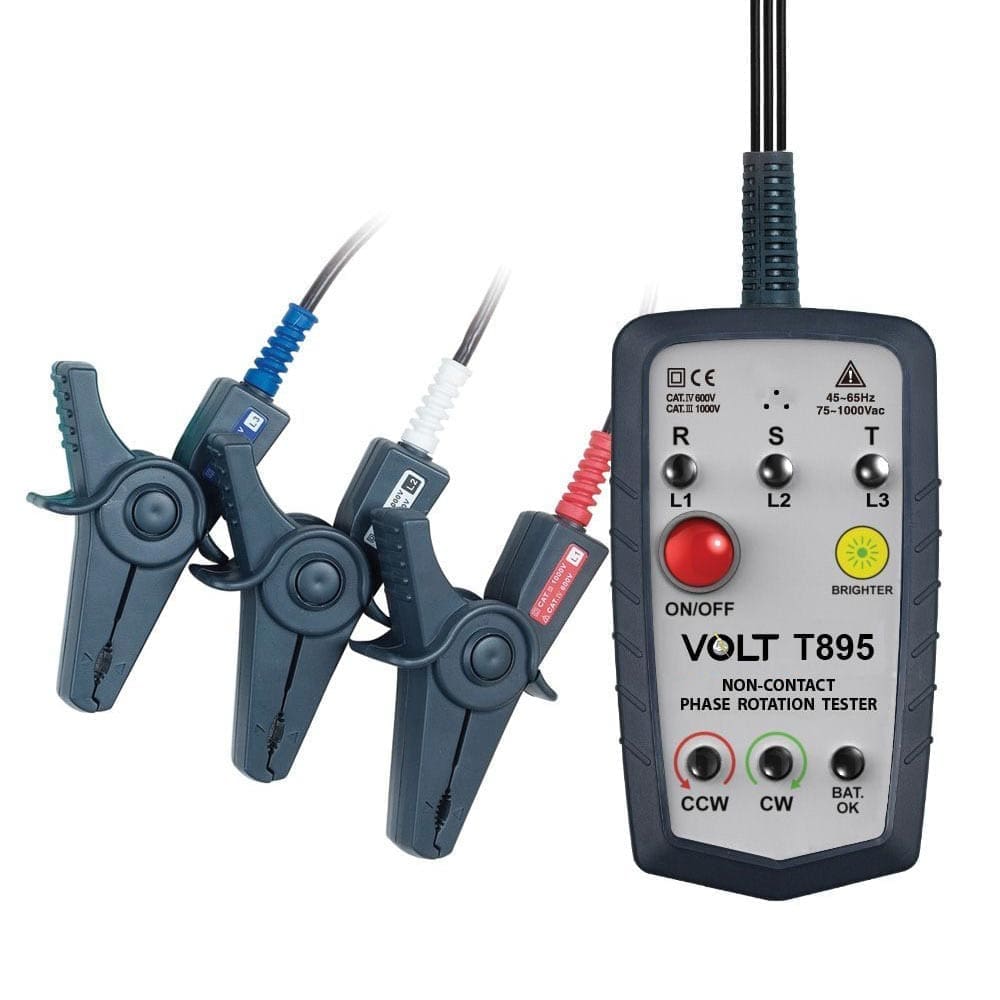

Volt’s Non-Contact Phase Rotation Tester is designed to identify phase sequence on three-phase systems and open phases.
Key Features:
Measurement Range: 75VAC – 1000VAC
Frequency Range: 45Hz – 65Hz
Dimensions: 127mm x 72mm x 44mm
Weight: 400g
Cable Length: 800mm
Clip Jaw Opening: 33mm diameter
Operating Temperature: 0C – 40C
Identifies phase sequence on three-phase systems and open phases
Brightness button to help with visibility in bright areas
Bright LED display lights to indicate results of test
No metal contact points to provide greater safety
Powered by one 9V battery
Loud buzzer indicator
Standards:
EN 61010-1 CAT III 1000V / CAT IV 600V
EN 61326-1 EN 61557-1
EN 61557-7
IP40
