Kaelus IPA Premium Accessory Kit

Kaelus IPA Premium Accessory Kit

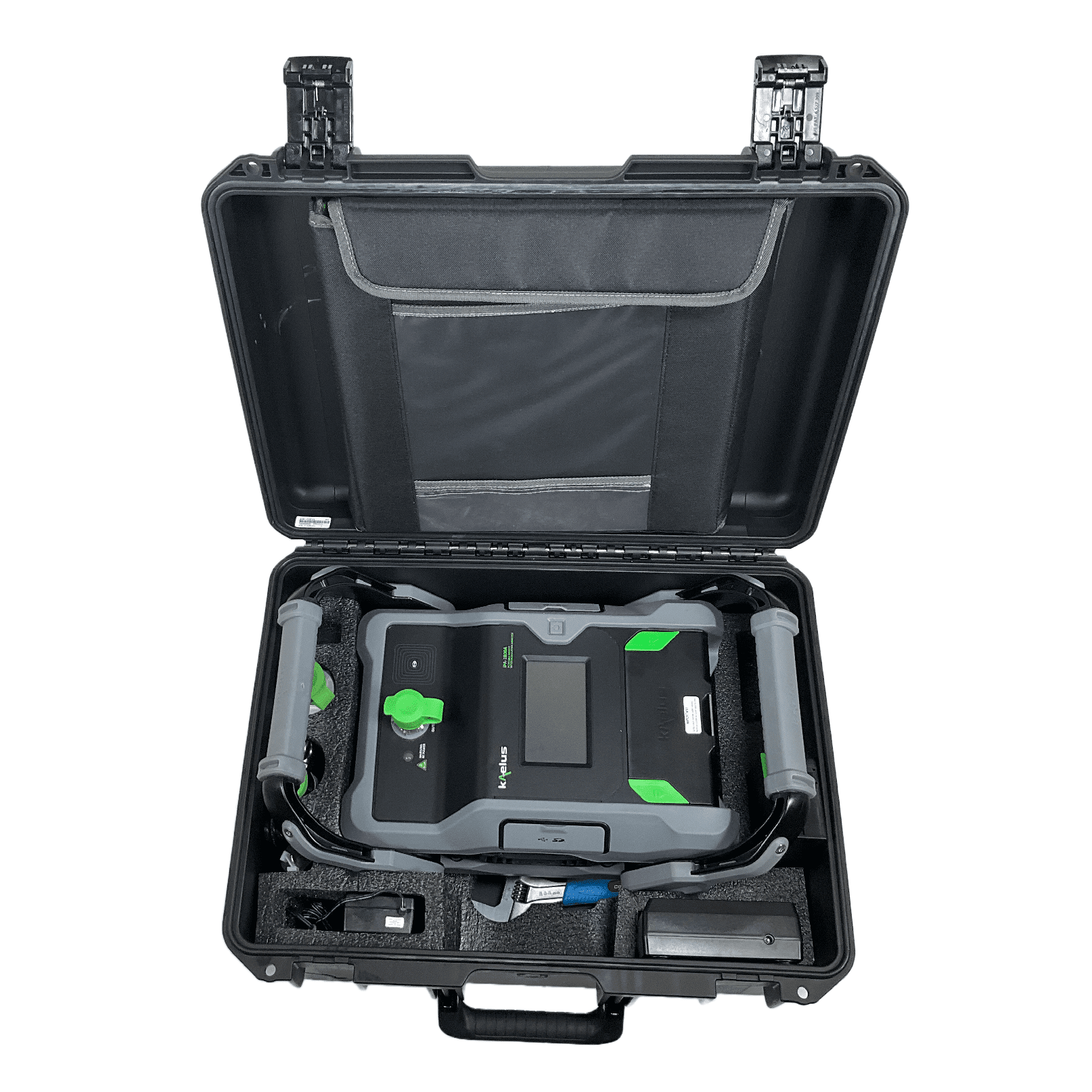

The iAK is a Passive Intermodulation (PIM) premium test accessory kit that includes all of the necessary components required to validate test equipment operation and perform PIM testing on systems with 7-16 DIN and Type-N connectors. Reach maximum efficiency and safety in your test environment through the use of the Kaelus *iPA Portable PIM Test Analyser and Range to Fault (RTF) Technology. The iAK Accessory kit completes your Kaelus PIM testing solution in any test environment from top of tower, base of tower, rooftop and in-building systems. The customized storage and carrying case is rugged enough for complete protection of the iPA and components when transporting or on site testing. *iPA and RTF sold separately.

FEATURES:

• Battery for iPA
• PIM source and low PIM load
• Rugged, portable construction

KIT CONTENTS:

• R92-0445, iPA transit and accessory case

• CIS-0001A, PIM source

• PIL-0005A, Low PIM load

• ASSY123721, 3m test cable, 7/16 (M) to 4.3-10 (M)

• R29-4858, Torque wrench, 22mm, 5Nm for torquing down 4.3-10 connectors

• R29-1851, Torque wrench, 32mm, 25Nm for torquing down 7/16 connectors

• ASSY108321, High Capacity Battery

• R92-0443, Dual battery charging cradle

• R92-0459, Connector cleaning kit

• R92-0460, Adaptor kit

Adaptor kit R92-0460 contents:

• R40-10100, Adaptor 7/16 D (M) – 4.3-10 (F)
• R40-10101, Adaptor 7/16 (F) – 4.3-10 (F)
• R40-10114, Adaptor 7/16 (M) – 4.3-10 (M)
• R40-10111, Adaptor 7/16 (F) – 4.3-10 (M)
• R40-10102, Adaptor 4.3-10 (F) to 4.3-10 (F)
• R79-10093, Adaptor 7/16 (F) – 7/16 (F)
