Kaelus IWA Series Cable & Antenna Analyser Kit
SKU: 4e784e8b6ff3
Kaelus IWA Series Cable & Antenna Analyser
CABLE AND ANTENNA ANALYZER (54-4100MHZ)

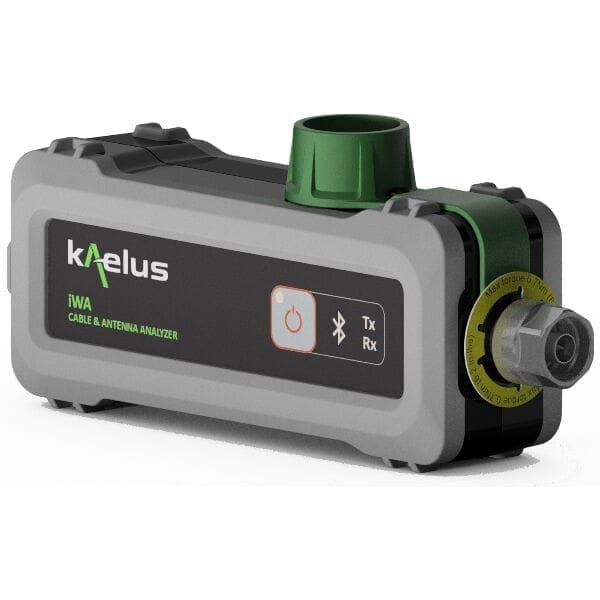

The iWA series Cable & Antenna Analyzer is the evolution of our well respected and very reliable iVA platform. The iWA extended frequency range to 4GHz supports Land Mobile Radio (LMR) and 5G midband networks while enabling users to accurately measure and locate VSWR/return loss faults in their RF infrastructure. In addition, the Bluetooth wireless connectivity allows unprecedented measurement flexibility. The iWA is an ergonomically designed, rugged battery operated module that is remotely controlled with any tablet, smartphone or laptop computer.
FEATURES:
- Redefining site certification sweep testing, dramatically reducing test time on site
- Simple to operate, highly intuitive software user interface with the unique ability to generate and complete the test report onsite with no post-processing or additional data entry required
- Kaelus Unify software available for Android, iOS and Windows allows Kaelus iPA(s) and iWA(s) to combine your RL data with your PIM data into a single report.
- Geotag each test point, insert a Google Maps® snapshot directly into the report
- Instrument controlled via robust Bluetooth connection.
- Connect directly to the device under test; eliminates the need for a phase stable cable in most cases
Return loss, VSWR, Cable loss, Distance-to-fault (DTF) Sweeper
To tap into TMG’s 135+ years of technical expertise, please fill in the above contact form, or call us on 1800 680 680, and one of our product experts will be happy to assist you. If you already know exactly what you need, most of our range is also available for sale online, at Contractor Essentials.
