Kaelus RANGE TO FAULT

PIM & RETURN LOSS MEASUREMENT

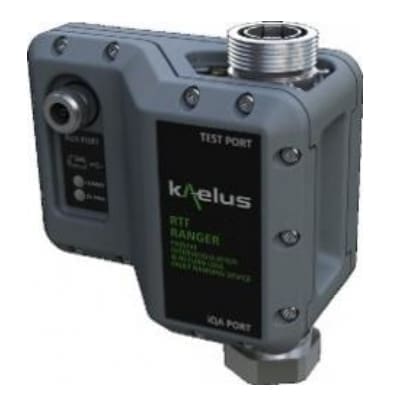

Range To Fault (RTF) is an exciting technology from Kaelus that enables operators to accurately measure the location of PIM and Return Loss faults in their RF infrastructure. Reflection data together with PIM data provides an unmatched level of clarity for identifying the location of faults in the RF path. The RTF system consists of an RTF Module, interconnecting cables and an “RTF Enabled” iPA or iBA series PIM test instrument. Customers can purchase a new “RTF Enabled” PIM test analyzer from Kaelus. Please contact your local Kaelus representative for additional information.

FEATURES:

• Accurately identify the location of PIM and Return Loss faults in the RF path
• Simple to operate, highly intuitive touch screen user interface
• Overlay PIM and Return Loss vs. distance data for enhanced troubleshooting capability
• Quickly switch between different test modes without disconnecting the line under test
• Compatible with any “RTF Enabled” series PIM test instrument from Kaelus
• Speeds site repairs by guiding operators to the location of PIM faults
• Before PIM testing, the RTF Module performs a Return Loss safety check to warn the operator before transmitting high RF power into a poor match
