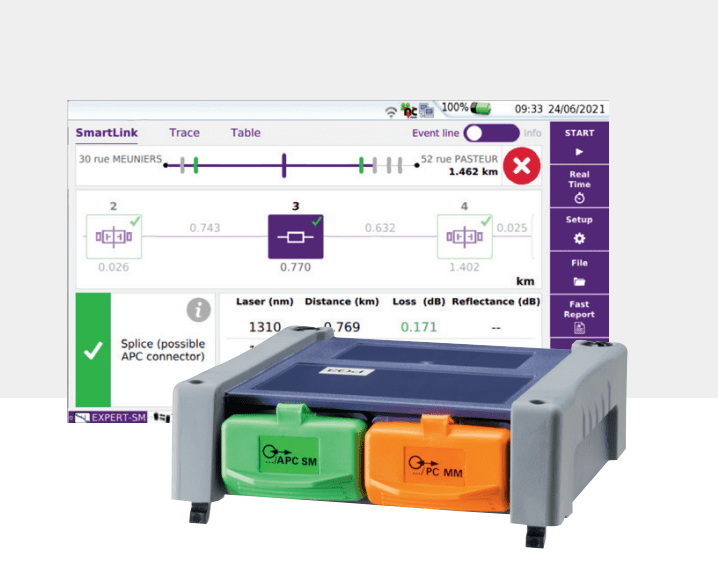

VIAVI QUAD OTDR Module

The VIAVI Quad OTDR module features fast acquisition time, sharp resolution, up to a 26 dB multimode dynamic range, and up to a 37 dB single-mode dynamic range for installing and maintaining fiber links. Its integrated light source, accessible through both OTDR ports (multimode and single-mode), let users quickly identify fiber without switching ports and conduct a full range of fiber certification tests.
The Quad module’s optical performance combined with a complete suite of platform enabled testing and reporting features ensures that testing is done right—the first time.
Key Features
• Up to 37 dB dynamic range in single-mode and 26 dB in multimode
• Quad-wavelength version with 850, 1300, 1310, and 1550 nm
• Integrated continuous wave (CW) light source
• TIA/IEC pass/fail thresholds
• Propagation delay measurement in multimode (TIA-568-C)
• Certifies Tier 2 premises networks
• IEC 61280-4-3-compliant using an external modal controller
